Triton PC Line

Pressure Compensating Dripline

With a Cylindrical Emitter

Triton PC Line Coil

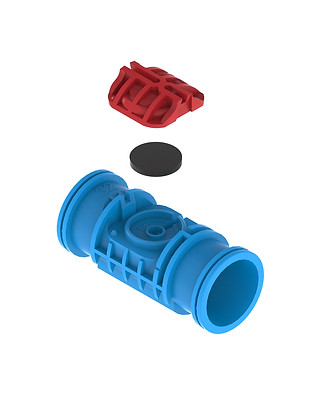

Triton PC Emitter

Drain (D), Non-Drain (ND) and Anti-Siphon (AS) options

The anti-siphon (AS) system both in D and ND versions is a specially designed mechanism that prevents suction of dirt and impurities into the emitter. The AS feature enables Triton PC Line to be installed underground (SDI), perfectly maintaining its irrigation characteristics and its multiyear durability. With the Non-drain system, the dripline remains full of water during irrigation intervals, ensuring immediate and uniform irrigation along the dripline. Moreover, Non-Drain emitters eliminate drainage and refill effect, and improve efficiency in pulse irrigation. In order to achieve the Non-Drain function, the emitter opens at 0,30 bar and closes at 0,18 bar.

Triton PC Line Specifications

​

Triton PC Line is produced with the highest quality raw material, in state-of-the-art production lines by integrating the most advanced emitter of the industry. Provides extreme tensile strength, since it is produced with high-quality resins. Offers excellent performance on the field due to the flawlessly designed, injected molded Triton PC emitter with very low CV. The unique design of Triton PC emitter, provides high clogging resistance and offers the highest emission uniformity. The combination of those elements translates to superior quality, evenly grown crops and increased overall yield which leads to higher income for every farmer worldwide. Triton PC Line is the most durable Pressure Compensating dripline, designed for steep and rocky terrain, permanent crops with long laterals, for both surface and subsurface applications.

Triton_large.tif

   Product Characteristics

  • Available in 16mm external diameter (13,7 internal diameter), with wall thickness of 0,9 / 1,0 and 1,1mm
    that enables both surface and subsurface installations for multi-seasonal applications

  • Available in two flow rates 2 lph and 4 lph

  • Pressure compensating (PC) emitters incorporate a silicone membrane which enables the delivery of precise and equal amounts of water over a broad pressure range

  • Available in Drain (D), Non-Drain (ND) and Anti Siphon (AS) options for every possible installation both on surface and subsurface

  • Excellent Coefficient of Variation, lower than similar products due to the excellent emitter design and their production on state-of-the-art injection machines

  • Advanced water inlet design, increases filtering area and prevents particle insertion in the emitter, thus enhancing the anticlogging performance

  • Specially designed labyrinth creates high turbulent flow, therefore preventing clogging of the emitter

  • Emitters are tested from both CIT and Irstea institutes and achieved the highest ranking for CV, emission uniformity, flow accuracy and clogging resistance
